Why Do PM2.5 Optical Sensors Mistake High Humidity for Toxic Smog?

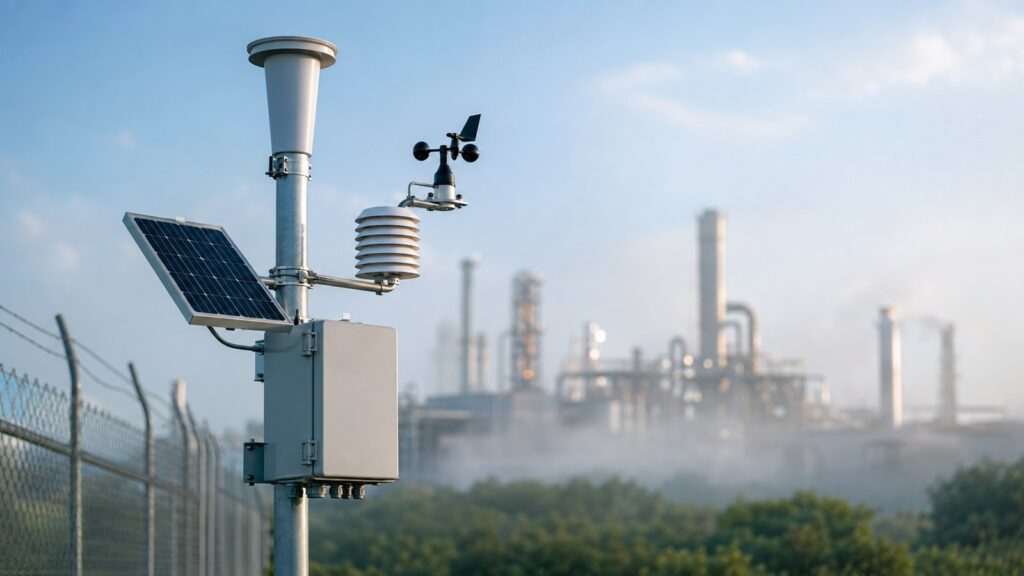

Control room operators hate early morning pollution alarms. An outdoor Air Quality Monitoring System (AQMS) triggers a hazardous air quality alert just after dawn, sending environmental managers scrambling to find a leak. Yet the boilers are running perfectly, and the haul roads are empty. The culprit usually isn’t a broken photodiode or a hidden emission source. It’s just water. High ambient humidity tricks optical sensors into logging harmless morning mist as toxic particulate matter.

Most modern dust monitors use optical particle counters (OPCs). A laser beam shines through a sensing cell, and a photodetector measures the light scattered by passing particles. The firmware converts that scattered light into a mass concentration (µg/m³). This math relies on a massive assumption: that all particles are solid, dry, and spherical. When relative humidity (RH) pushes past 70%, that assumption breaks. The sensor starts reporting particulate levels two to three times higher than the actual dry aerosol mass.

Physical Mechanisms Driving PM2.5 Sensor Humidity Bias

The error originates in the chemical makeup of the dust itself. In industrial zones, secondary inorganic salts like ammonium sulfate and ammonium nitrate make up anywhere from 20% to 50% of total PM2.5 mass. These salts are highly hygroscopic. They actively pull water molecules straight out of the surrounding air.

This water absorption happens abruptly at a specific threshold called Deliquescence Relative Humidity (DRH). At 25°C, ammonium nitrate crystals start dissolving into liquid droplets around 60% RH. Ammonium sulfate holds out until about 80% RH. Cross that threshold, and the solid particulate instantly swells with condensed water.

That microscopic swelling ruins the optical measurement. A particle’s volume scales with the cube of its diameter. If a condensed water shell increases the particle’s diameter by just 50%, its total volume more than triples. Because the sensor calculates mass directly from the size of the optical scatter, it logs the heavy water droplet as solid toxic dust. Harmless fog becomes a compliance violation.

Physical Sample Conditioning: How Heated Inlets Eliminate Water Bias

Environmental regulators know about this bias. The US EPA and European EN 12341 standards explicitly forbid counting water mass as particulate matter. They require sample streams to be conditioned below 50% RH before measurement. Indonesian SNI 7119.14:2016 gravimetric rules mandate a similar 24-hour desiccation period for PM2.5 filters.

For automated outdoor stations, engineers fix this with a heated sample inlet. This thermal tube physically warms the incoming ambient air to roughly 35°C–40°C. Raising the temperature drops the relative humidity below 50%. The heat evaporates the liquid water shell entirely before the dried aerosol ever reaches the laser chamber.

The hardware approach works exceptionally well. Field tests show that adding a heated inlet keeps optical sensor error under 7% compared to reference-grade Beta Attenuation Monitors (BAM). However, that heat requires power. A heated inlet draws a continuous 5 to 15 Watts (120 to 360 Wh daily). If a station runs off the grid, technicians must build that constant thermal drain into the solar panel and battery capacity calculations.

Algorithmic Correction: Kappa-Kohler Mathematical Models and Limits

When off-grid power budgets are too tight for a heater, software compensation is the next best option. Instead of physically drying the air, the datalogger uses real-time humidity readings from a nearby weather sensor to correct the optical data mathematically.

Most dataloggers rely on an empirical formula based on κ-Köhler (kappa-Köhler) theory:

C_corrected = C_raw / [1 + κ · (RH / (100 – RH))]

The formula takes the raw optical mass (C_raw) and scales it down based on the measured relative humidity (RH) and a local hygroscopicity coefficient (kappa, κ). Software correction costs zero electrical power and adds no moving parts to the mast.

But math cannot fix everything. The kappa value is hardcoded, even though actual aerosol chemistry shifts constantly with wind direction and industrial output. Worse, the formula completely falls apart during dense fog. When humidity tops 90%, free-floating water mist overwhelms the optical baseline, rendering mathematical models useless.

Engineering Decision Matrix: Heated Inlet vs Algorithmic Correction

Engineers have to balance site power limits against regulatory compliance. This matrix outlines the trade-offs:

Engineering Criterion	Physical Heated Sample Inlet	Software Algorithmic Correction
Conditioning Principle	Active thermal heating; maintains sample RH <50% before optical chamber	Post-acquisition mathematical normalization using co-located RH data
Power Consumption	High (continuous 5–15 Watts / 120–360 Wh daily budget)	Zero (negligible micro-controller computing overhead)
Accuracy at RH >90% / Fog	High; effectively volatilizes liquid moisture droplets	Low; vulnerable to optical saturation from suspended water mist
Aerosol Chemistry Sensitivity	Independent of chemical assumptions; measures true dry aerosol mass	Highly sensitive to accurate local hygroscopicity (κ) calibration
Maintenance Requirements	Periodic inspection of heating sheath and sampling tube cleaning	Zero physical maintenance; relies on routine RH sensor calibration
Deployment Suitability	Regulatory compliance, industrial perimeter fencing, official reporting	Indicative wide-area sensor grids, off-grid research, solar micro-nodes

Field Diagnostic Checklist for Validating Suspicious PM2.5 Spikes

Permen LHK No. 14 Tahun 2020 requires continuous AQMS sites in Indonesia to log meteorological data precisely for this reason. Wind, temperature, and humidity records are the primary defense against false alarms.

Before issuing an incident report for a sudden particulate spike, technicians should run through these four checks:

• Check the Humidity Curve: Overlay the PM2.5 trend against the weather station RH data. If dust spikes perfectly align with dawn humidity crossing 80% and vanish when the sun dries the air, it is almost certainly water bias.
• Look at the PM2.5/PM10 Ratio: Real mechanical dust from industrial grinding or hauling spikes both PM10 and PM2.5. Condensation heavily favors fine aerosols. If the PM2.5-to-PM10 ratio suddenly jumps toward 1.0, water is skewing the numbers.
• Verify Combustion Gases: Boiler stacks emit sulfur dioxide (SO₂), nitrogen dioxide (NO₂), and carbon monoxide (CO) alongside particulate matter. A massive PM2.5 spike with perfectly flat combustion gas readings points straight to mist.
• Trace the Wind: Check the anemometer. Wind blowing off a retention basin or damp forest carries far more moisture than wind coming off a dry industrial yard.

Skipping this validation breaks public Air Quality Index (ISPU) calculations. Nobody wants to trigger a regulatory audit over morning dew.

Integrated Industrial AQMS Engineering with Fortuna Argatech

Running air quality telemetry in a tropical climate requires hardware built for heavy moisture. Buying standard optical sensors without a solid sample conditioning plan guarantees garbage data during the rainy season.

Fortuna Argatech engineers industrial AQMS packages specifically for tropical extremes. We pair precision laser particle counters with micro-weather stations and the GEOVOS 1000 datalogger to catch humidity anomalies at the edge, blocking false alarms long before they hit the supervisor’s dashboard.

Perimeter compliance monitoring leaves no room for guesswork. The instrumentation engineering team at Fortuna Argatech handles the complete integration, balancing heated inlet power loads against custom off-grid solar rigs to deliver clean, compliant data year-round.
