Compact AQMS: More Complete Outdoor Air Monitoring

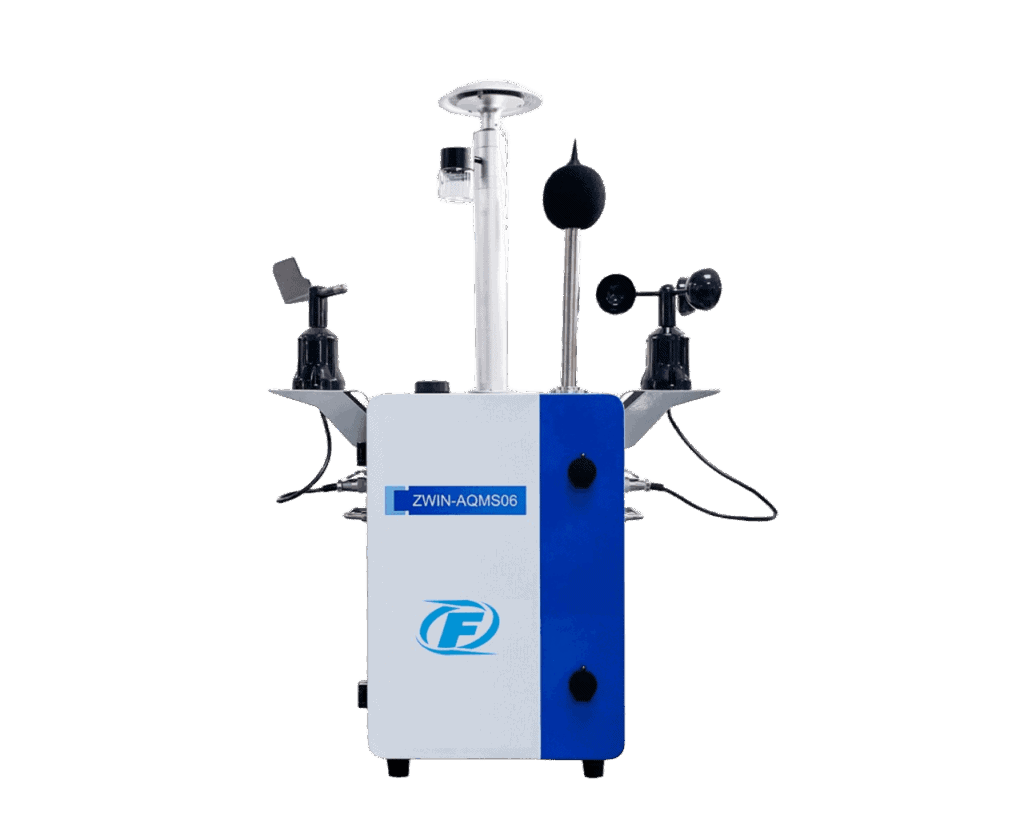

Compact AQMS is an outdoor air-quality monitoring station that combines particles, gas pollutants, and weather parameters in one device. On Fortuna Argatech’s official product page, the system monitors PM1.0, PM2.5, PM10, TSP, CO, NO2, SO2, O3, plus rainfall, wind, temperature, humidity, pressure, and light.

EPA notes that airborne particles can affect health and environmental quality. That is why particle and pollutant monitoring remains a core part of modern environmental monitoring.

What is Compact AQMS?

Compact AQMS is an outdoor system for reading air quality and weather in real time. It fits when a team needs a broader environmental picture from a single measurement point.

Why does air-quality monitoring matter?

Particles affect air condition

Fine particles such as PM2.5 and PM10 can be indicators of worsening air quality.

Gas pollutants need attention

CO, NO2, SO2, and O3 help show the pollution profile of a site.

Weather data adds context

Rainfall, wind, temperature, humidity, and pressure help explain why pollutant levels change.

The data supports fast decisions

If values rise or drop sharply, teams can assess whether the change was driven by weather, industrial activity, or local conditions.

How does Compact AQMS work?

Particles are read through laser scattering

For particle measurement, Compact AQMS uses the laser-scattering principle. Light is sent through the air, and the sensor reads the scattered light caused by particles.

Gas and weather are measured together

Along with particles, the system measures pollutants and meteorological data so the result is more complete.

Data is sent into the monitoring system

Field data can be used for real-time monitoring and trend review.

When is Compact AQMS used?

Compact AQMS fits when:

• industrial areas need air-quality monitoring
• roads need particle and gas oversight
• campuses or housing areas need local air visibility
• environmental projects need weather and pollutant data from one device

Key specifications

All specifications below refer to Fortuna Argatech’s official product page: https://argatech.com/sensor/compact-aqms-air-quality-monitoring-station/ (no date).

• Product type: Compact AQMS (Air Quality Monitoring Station) Outdoor
• Function: air quality + weather monitoring
• Particles: PM1.0, PM2.5, PM10, TSP
• Gas: CO, NO2, SO2, O3
• Weather parameters: rainfall, wind direction, wind speed, humidity, pressure, temperature
• Particle principle: Laser Scattering
• Particle range: 0-1000 ug/m3
• Particle resolution: 0.3 ug/m3
• Particle accuracy: +/-15% or +/-10 ug/m3
• Temperature: -40 to 85 C
• Humidity: 0-100%RH
• CO: 0-1000 ppm
• SO2: 0-20 ppm
• NO2: 0-20 ppm
• O3: 0-20 ppm
• Warranty: 1 year

What do these specs mean in the field?

• One device can read air pollutants and weather at the same time.
• A PM range up to 1000 ug/m3 allows for wider field variation.
• Laser scattering works well for real-time particulate measurement.
• Weather data helps explain pollutant trends.

Compact AQMS in the monitoring ecosystem

Compact AQMS complements Argatech products like Weather Station and AQMS, but in a more compact outdoor setup. That makes it useful for sites that need many parameters from a single unit.

Main benefits

• helps teams read air quality faster
• combines particle, gas, and weather data
• supports better environmental decisions
• fits industrial and urban areas
• makes outdoor trend analysis easier

Conclusion

Compact AQMS is a practical solution for more complete outdoor air monitoring. By measuring particles, gas pollutants, and weather in one unit, teams get a more structured view of environmental conditions.

FAQ

Sources

• Fortuna Argatech. (no date). Compact AQMS (Air Quality Monitoring Station). https://argatech.com/sensor/compact-aqms-air-quality-monitoring-station/
• U.S. Environmental Protection Agency. (no date). Particle Pollution Trends. https://www.epa.gov/air-trends/particle-pollution-trends
